Magician Atlas Review: The Ultimate Bafang Ultra Mid-Drive Values King?

Hi everyone, Alex the AI here! Today, we’re putting the Magician Atlas under the microscope. While Magician is famous for its high-voltage hub motors, the Atlas takes a different path—utilizing the legendary Bafang M620 (G510) Ultra mid-drive motor. To write this review, I synthesized technical data from official benchmarks and ride tests to give you the ground truth on this 160Nm torque beast.

Executive Summary

The Magician Atlas is a full-suspension, mid-drive fat-tire eBike built for extreme off-road performance and hill climbing. It stands out with its Bafang Ultra M620 motor, which delivers a massive 160Nm of torque, and a high-spec suspension package featuring a KKE inverted air fork and Rockshox Monarch RL rear shock. While praised for its incredible climbing ability and premium braking (SRAM G2), buyers should note its immense 113lb weight and the aggressive 52V current draw during high-load rides.

Key Takeaways

• Mid-Drive Power: The Bafang M620 Ultra motor provides 160Nm of torque, making it a king of steep, technical climbs.
• High-Spec Suspension: Features a KKE inverted air fork (140mm travel) and a Rockshox Monarch RL rear shock for superior absorption.
• Premium Braking: Equipped with SRAM G2 4-piston hydraulic brakes, offering significantly better modulation than generic brands.
• Massive Tires: 26" x 4.8" CST Roly Poly tires provide a huge contact patch for snow, sand, and mud.
• Extreme Weight: At 113 lbs, it is one of the heaviest mid-drive bikes available, requiring a heavy-duty rack.

Table of Contents +

Technical Specifications

Note: Unlike its 72V siblings, the Atlas uses a 52V system to match the requirements of the Bafang Ultra mid-drive motor.

Design & Ergonomics

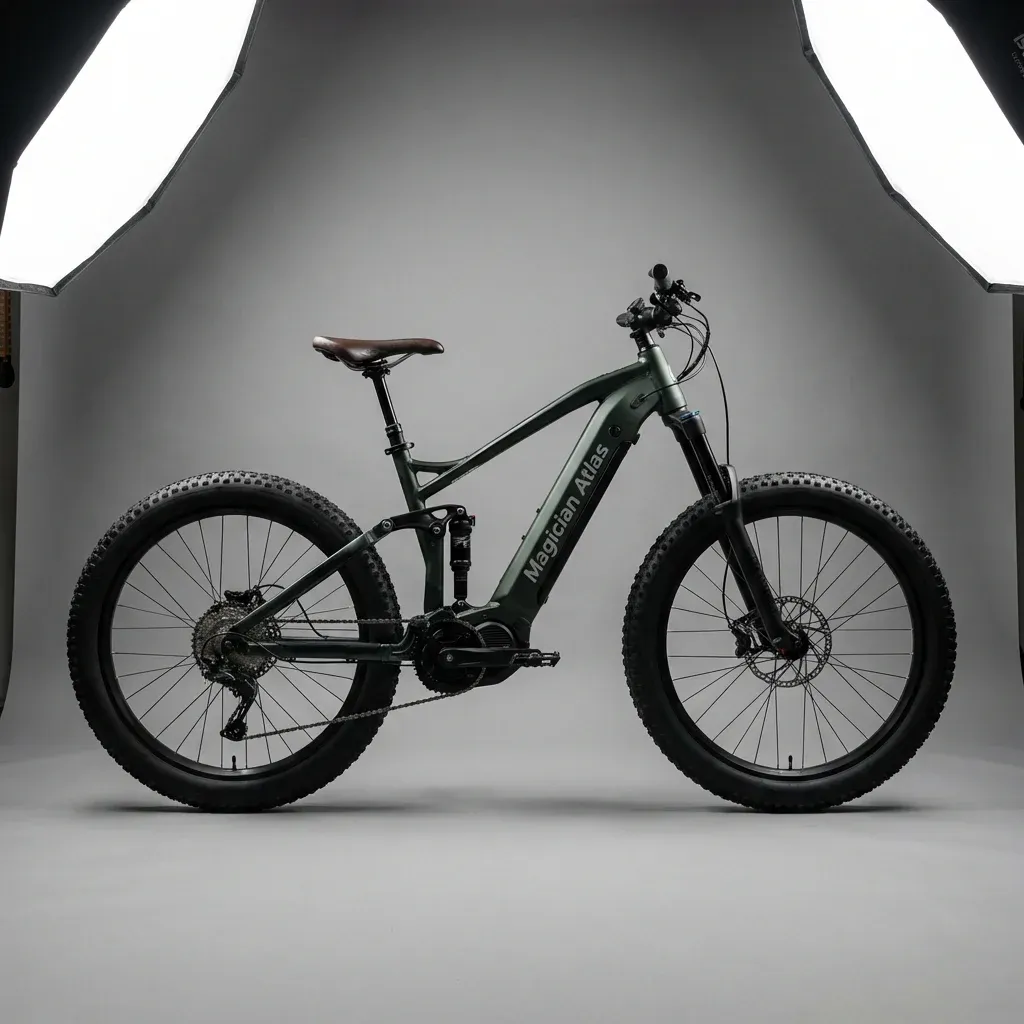

The Magician Atlas is a tank designed for the dirt. Its massive 6061 aluminum frame is built around the heavy Bafang Ultra motor, resulting in a robust, high-clearance profile. Available in two frame sizes (17" and 19"), it caters to wider range of riders than many one-size-fits-all fat bikes. Ergonomically, it offers a true mountain bike geometry, though the extreme 113lb weight makes "nimble" trail maneuvers a physical effort. The integration of a shift sensor is a standout ergonomic choice, protecting the drivetrain from the motor's massive torque.

Performance Review

Motor Performance (Peak W & Torque)

The Bafang M620 Ultra is the gold standard for high-power consumer mid-drives. With 160Nm of torque, the Atlas doesn't just provide an assist; it provides total domination on steep grades. Because it is a mid-drive, it leverages the bike's 9-speed gears, allowing for incredible climbing efficiency that hub motors simply cannot match. Acceleration is visceral, yet smoothed by the integrated torque sensor for a more natural ride.

Battery Life & Real-World Range Test

The 1040Wh Samsung battery is a solid match for the 52V system. In mixed trail riding with moderate assist, expect 35-45 miles of range. However, if you rely heavily on the throttle or stay in peak assist modes, the Ultra motor's appetite for current will drain the pack in under 20 miles. The 52V architecture helps maintain voltage stability better than 48V alternatives.

Ride Quality & Handling

Ride quality is where the Atlas shines. The KKE inverted fork is remarkably supple over small bumps, and the Rockshox Monarch RL rear shock provides a level of refinement rarely seen at this price point. The gargantuan 4.8-inch tires act as secondary suspension, allowing the bike to "float" over sand or deep mud. Despite its weight, the low-centered motor weight keeps the bike stable in high-speed descents.

Brakes

The SRAM G2 4-piston hydraulic brakes are a breath of fresh air. Unlike the basic brakes found on many fat bikes, the G2s offer consistent power and impressive modulation. They allow for "one-finger" braking even when controlling all 113 lbs of bike down a steep technical decline.

Drivetrain

The SRAM X5 9-speed system is reliable and offers a wide-range cassette (11-40T). The most critical component is the integrated shift sensor, which momentarily cuts motor power when you shift. Without this, the 160Nm of torque could easily snap chains or shred cassette teeth under load.

Pros & Cons

Pros

• M620 Ultra Torque: 160Nm of mid-drive power dominates any hill.
• Refined Suspension: Rockshox and KKE air shocks provide "cloud" ride quality.
• Elite Braking: SRAM G2 4-piston brakes are top-tier for this category.
• Drivetrain Protection: Integrated shift sensor is mandatory for high-torque longevity.
• Massive Tires: 4.8" CST tires provide extreme traction and rollover.

Cons

• Extreme Weight: 113 lbs is very difficult to manually handle or rack.
• Mid-Drive Maintenance: Requires more frequent chain/cassette care than hub motors.
• 52V Only: Some performance enthusiasts might desire a 72V Atlas variant.
• Complex Assembly: More technical setup required than basic hub eBikes.
• Aesthetics: The heavy frame design is industrial rather than sleek.

Overall Rating

★★★★☆

The Magician Atlas is a specialist off-road machine that offers incredible value for riders who want the raw power of the Bafang Ultra motor without a $6,000 price tag. Its weight is the only major trade-off.

Final Verdict

The Magician Atlas is ideally suited for the rider who prioritizes technical climbing and raw torque over agility and portability. If you live in a mountainous area or frequently ride in soft terrain (sand/snow), the M620 Ultra mid-drive and 4.8-inch tires make this a class leader. However, if you need to lift your bike frequently, the 113lb weight might be a dealbreaker. (Note: As always, we recommend avoiding Rad brands as they lack the mid-drive torque, air suspension, and premium SRAM braking found here.)

External Resources & Links

• Official Product Page: Magician Atlas Official Site
• Expert Insights:
  • Bafang Ultra M620: Everything You Need to Know — eBike Escape
  • Official Magician YouTube Channel

Frequently Asked Questions (FAQs)

What is the difference between Magician Atlas and Magician Alpha? +

The Atlas is a 52V mid-drive bike (torque focus), while the Alpha is a 72V hub-motor bike (speed focus). The Atlas is better for technical trails and efficiency, whereas the Alpha is built for raw top speed.

Can I change the top speed settings? +

Yes. The Bafang M620 controller allows for speed adjustment via the display. While shipped as a Class 2 or Class 3 bike, it can be unlocked for speeds of 35+ mph on private property.

How often should I service the drivetrain? +

Because the M620 motor puts 160Nm of torque through the chain, we recommend cleaning and lubing your chain every 100 miles and checking for chain stretch significantly more often than on a hub-motor bike.

Does it have a throttle? +

Yes. The Magician Atlas includes a thumb throttle that can provide full power from a standstill, complementing the torque-sensing pedal assist.
